| Product Attribute | Attribute Value |
|---|---|
| Body Style | Rectangular |
| Connection | Screw Terminals |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 1A at 240Vac |
| Current, Ratings | 5/10/30 mA |
| Function | Current |
| Height | 3.88 Inch |
| Housing Type | Solid Core |
| Input Voltage | 120Vac |
| Length | 1.5 Inch |
| Mounting Type | Panel Mount |
| Power, Supply | 120 VAC |
| Series | |
| Switch Type | Current Switch |
| Technology | Inductive |
| Type | Inductive |
| UPC Code | 786685120881 |
| Weight | .25 Pound |
| Width | 2.5 Inch |
Overview
Solid-core housing models are ideal for new equipment installations where the conductor wire is ran through the fixed aperture. Split-core models are perfect for retrofit applications because the housing can be opened to fit around an existing conductor. As such, split-core current sensors are easy to install, without re-wiring and shutting down a process for long periods of time. The simplicity of installing split-core models reduces overall installation costs.
Ground Fault Sensors

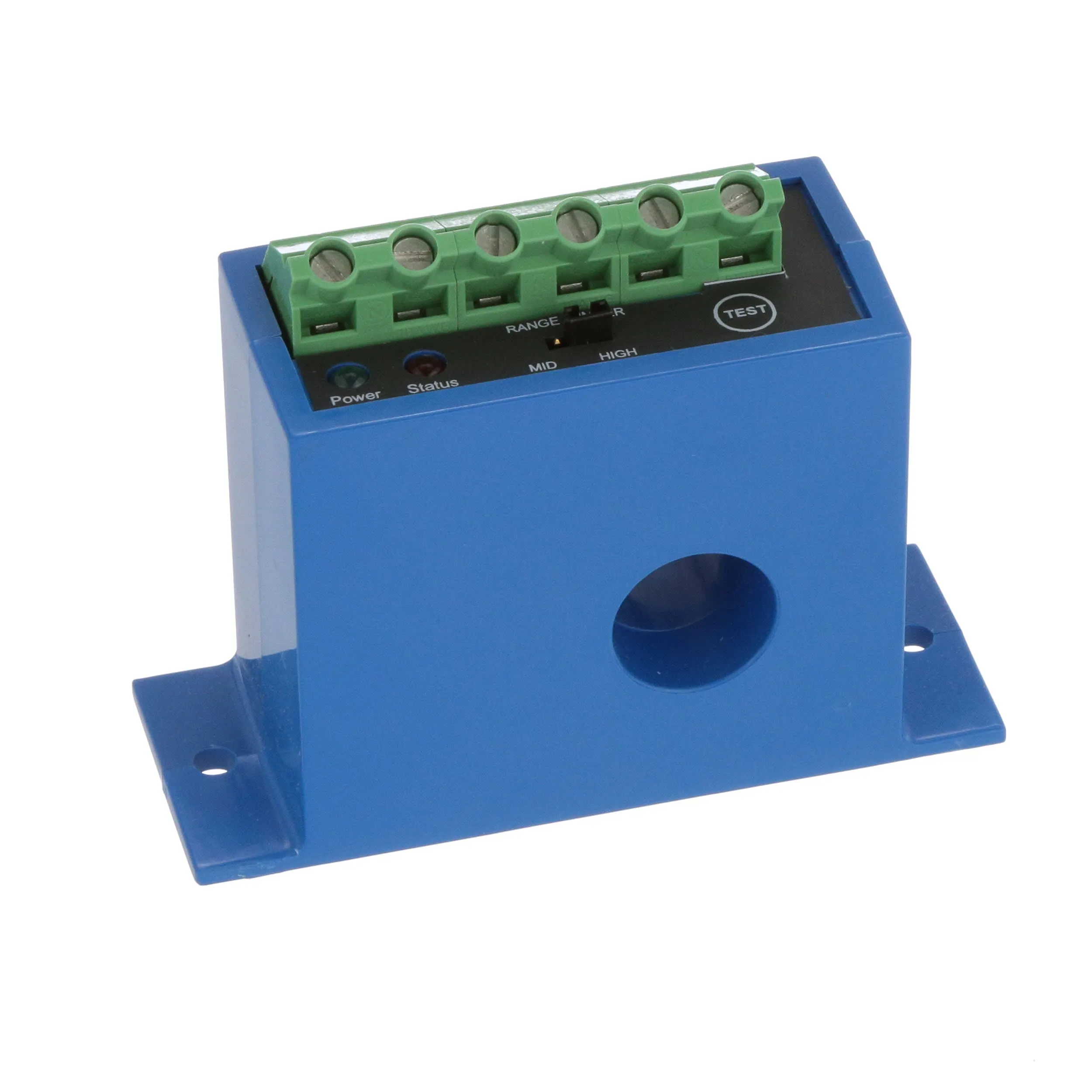

CurrentWatch™ EGF Series is a family of ground fault (earth leakage) sensors. Designed to protect products, processes, people from ground fault conditions by monitoring all current-carry conductors in single or three phase circuits. Current ranges up to 200 A with jumper position, solid core and split core modules for new and existing applications requiring reliable feedback on electrified equipment.
Features:
