Product Details

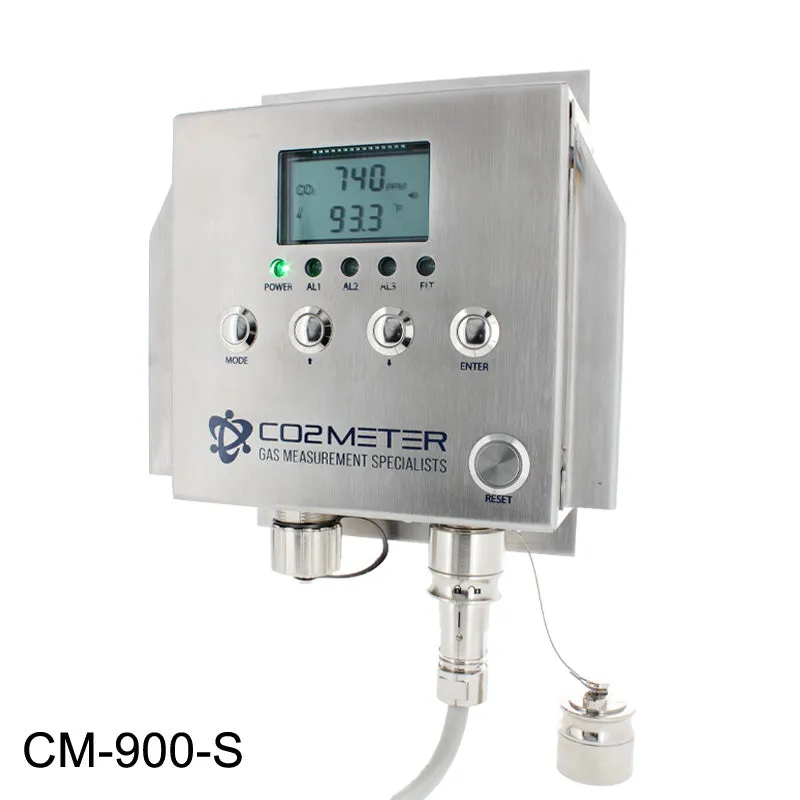

The CM-900-S: CO2 Industrial Fixed Gas Detector is an industrial gas safety solution for industries working near hazardous carbon dioxide gas, such as food processing and food packaging environments.

This device features an industrial stainless steel enclosure to meet FDA requirements and washdown applications.

The CM-900 and CM-902 industrial gas detectors are designed to be hard-wired only, cable now included.

Features

  • Fast and Precise CO2 measurements - monitors 0-5%
  • Type 316 Stainless Steel #4 Finish Enclosure
  • Audible and Visual Alarms
  • Designed to meet FDA requirements around Food Packaging applications
  • 3-user configurable relays dependent upon application
  • Meets all NFPA, IFC, and NBIC CO2 Safety Code Requirements
  • 4-20mA output to communicate with (BMS) Building Management Systems
  • Ideal for engine rooms, freezers, blast cells, food processing areas, refrigeration systems, and more

    Models


    Warranty

    • 1-year warranty - see

    Specifications

    • CO2 Measurement Range: 0-5% (50,000ppm)
    • Display Resolution: 10ppm at 0~10,000ppm
    • Accuracy:  /-200ppm or /-10% reading
    • Pressure Dependence: built in barometer (50 to 110 kPa)
    • Response Time: CO2: <2min by 90%
    • Alarms: 5,000 ppm TWA, 5,000ppm, 3% CO2 (configurable)
    • Alarm Relays: 3
    • Alarm Response Time: < 60 seconds
    • Sound Alarm: 80db@10cm
    • Operating Temperature: 32°F to 122°F (0°C to 50°C)
    • Warm-Up Time: <60 seconds at 22°C
    • Calibration: Manual with test gas or factory calibration
    • Dimensions: 8.25 in x 6.25 in x 3 in
    • Weight: 5.10 lbs (monitor only)
    • Sensor Life Expectancy: >15 years

    Electrical

    • Power Input: 9~32VDC (12~24VDC recommended), 2A.
    • Power Consumption: 3 Watts
    • Ingress Protection: IP64
    • 6VDC battery backup connections
    • Relays: Peak Current < 2A @ 30VDC or 250VAC, SPDT
    • Relay Color Coding:
      • Red & White = Normally Open
      • Blue & White = Normally Closed

    Documents



    Accessories

    Industrial Stainless Steel CO2 Gas Detector
    • CM900SIndustrialStainlessSteelCO2Detector

    $ 60.44

    $ 46.49
