How does it work?

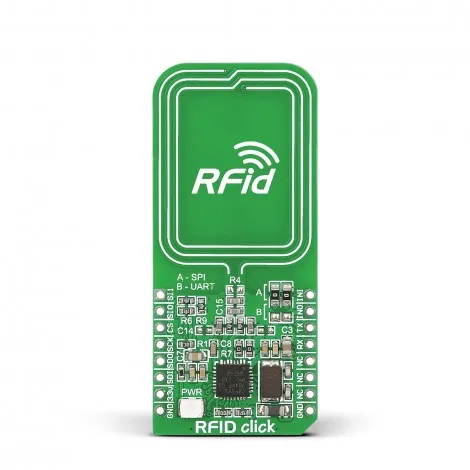

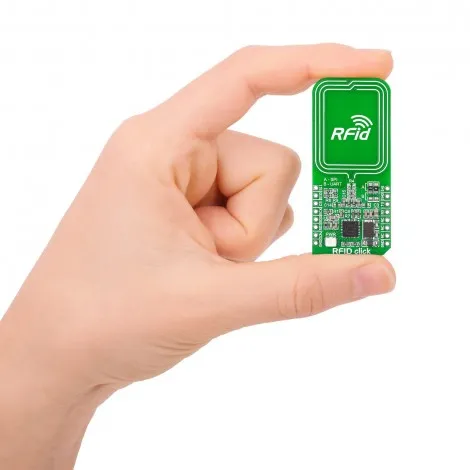

RFid Click is based on the CR95HF, a multi-protocol contactless transceiver from STMicroelectronics. This board supports ISO/IEC 14443 type A and B, ISO/IEC 15693, and ISO/IEC 18092 communication protocols (tags). In addition, it also supports the detection, reading, and writing of NFC forum type 1, 2, 3, and 4 tags with incorporated internal antenna. The CR95HF integrates an Analog Front End to provide the 13.56MHz Air Interface. It manages frame coding and decoding in Reader mode for standard applications such as near-field communication (NFC), proximity, and vicinity standards.

The CR95HF has two operating modes: Wait for Event (WFE) and Active Mode of operation. In Active mode, the CR95HF communicates actively with a tag or an external host. The WFE mode includes four low-consumption states: Power-up, Hibernate, Sleep, and Tag Detector, allowing the transceiver to switch from one mode to another. All states except Power-Up are software-accessible. While the CR95HF is in any of these, communication with the MCU is impossible. For normal communication, the transceiver must be woken up first.

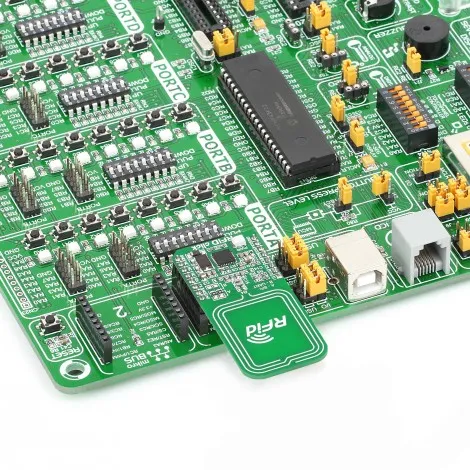

RFid Click can communicate with the host MCU using UART or SPI serial interfaces over the mikroBUS™ socket. This Click board™ comes with A and B jumpers with which the function of two multiplex pins is selected. Depending on their position, the pins can be used as UART or interrupt (input and output) pins (interrupt by default). These jumpers must be set to the B position for use with the UART interface, thus losing the interrupt function pins. The SSSI0 and SSI1 pins serve for communication interface selection based on their logic states.

This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.

Specifications

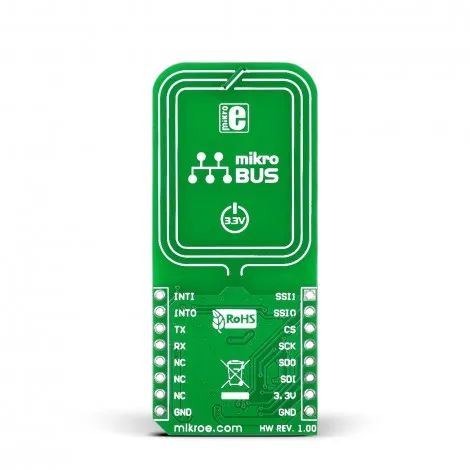

Pinout diagram

This table shows how the pinout on RFid Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Onboard settings and indicators

RFid Click electrical specifications

Software Support

We provide a library for the RFID Click as well as a demo application (example), developed using MikroElektronika . The demo can run on all the main MikroElektronika .

Package can be downloaded/installed directly from NECTO Studio Package Manager(recommended), downloaded from our or found on .

Library Description

This library contains API for RFID Click driver.

Key functions

• rfid_select_communication_interface Select communication interface.

• rfid_get_tag_uid Get RFID tag uid function.

• rfid_get_device_id RFID get device id function.

Example Description

This example demonstrates the use of RFID Click board by reading MIFARE ISO/IEC 14443 type A tag UID.

 void application_task ( void )
 {
     uint8_t tag_uid[ 20 ] = { 0 };
     uint8_t tag_len = rfid_get_tag_uid( &rfid, RFID_ISO_14443A, tag_uid );
     if ( tag_len > 0 )
     {
         log_printf( &logger, " TAG UID: " );
         for ( uint8_t cnt = 0; cnt < tag_len; cnt   )
         {
             log_printf( &logger, "0x%.2X ", ( uint16_t ) tag_uid[ cnt ] );
         }
         log_printf( &logger, "rn----------------------------------rn" );
         Delay_ms( 1000 );
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager(recommended), downloaded from our or found on .

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.RFID

Additional notes and informations

Depending on the development board you are using, you may need , or to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika .

mikroSDK

This Click board™ is supported with - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the and installed for the compiler you are using.

For more information about mikroSDK, visit the .
