Product Details
＋

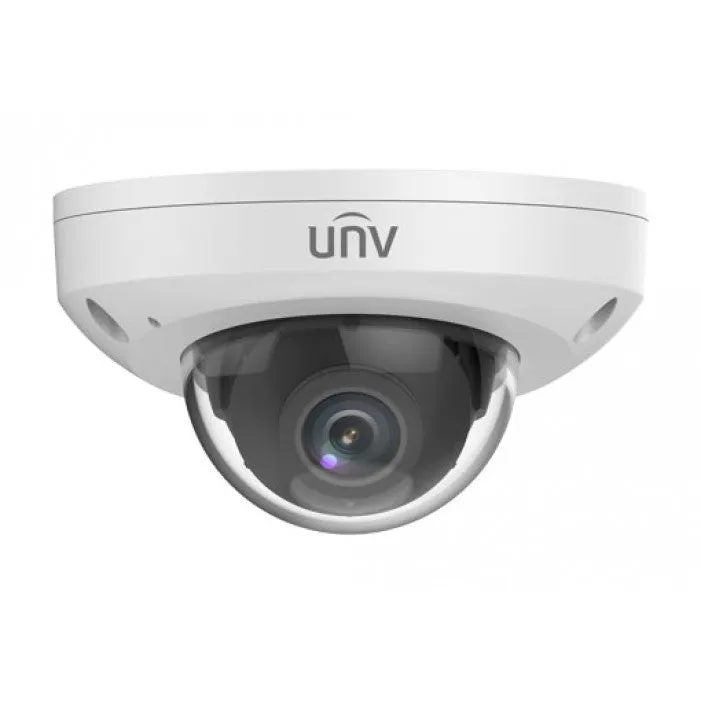

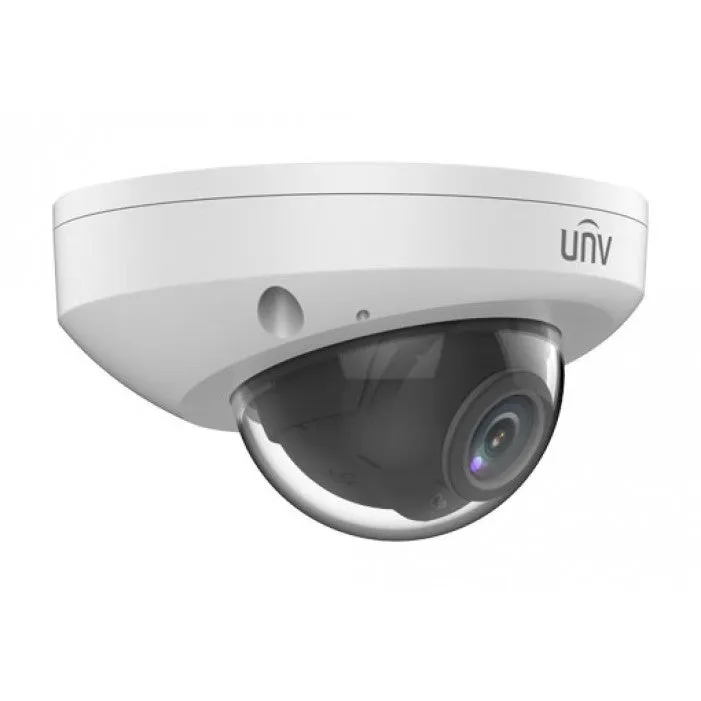

The IPC312SB-ADF28K-I0 from Uniview is a 2 megapixel HD lighthunter IR mini dome camera with 2.8mm lens.
Features
- High quality imaging with 2MP, 1/2.8" CMOS sensor
- 2MP (1920*1080) @ 30/25fps; 720P (1280*720) @ 30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear imaging in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
| Product SKU | IPC312SB-ADF28K-I0 |
|---|---|
| Brand | Uniview |
| Condition | New |
| NDAA Compliance | Yes |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| IR Distance | 30m/98ft |
| S/N Ratio | ≥52dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH,SSL/TLS |
| Privacy Zone | Up to 4 areas |
| Power Consumption | Max 6.0W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Minimum Scene Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR |
| Lens Size | 2.8mm |
| Camera Signal | Network IP |
| Lens Type | Fixed |
| Angle of View | H: 106.7°, V: 57.1°, O: 115.7° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP67 |
| IR Wavelength | 850nm |
| Back Light Compensation | Supported |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel (1080p) |
| Voltage | 12vDC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Dimensions (W x H) | Φ110 x 61mm (Ø4.3” x 2.4”) |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Audio | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
